PTFE Heater 110×210×60mm 230V 1P 1.5kw With J-Type Thermocouple PFA Frame Heater

PFA immersion tank heaters are the perfect solution for heating harsh chemicals or DI water to constant temperatures in ultrapure tanks, including PVDF, PFA, and quartz tanks. Their PFA/PTFE wetted surfaces are ideal for use in high-purity applications where chemical compatibility is of utmost importance. PFA immersion tank heater provide high-efficiency heating with superior temperature control and maximum power output in a compact footprint. The heaters are available in various sizes that easily fit new and existing systems common to semiconductor, solar, MEMs, and other technological industries.

• Ultrapure PTFE/PFA wetted surfaces
• Reliable heating of harsh chemicals
• Maximum power in compact footprint
• Maximum 200°C heating capability
• Fast temperature response and efficiency
• Each configuration capable of various voltage-to-wattage combinations
• Integrate easily into most PVDF, PFA, and quartz wet process tanks
• Sizes for many tank dimensions
• Compact height of 1-5/8 inch
• Safety features include hi-limit sensor and encapsulated ground wire
• No N2 purge required

Optional Perforated Grids

• Top grids separate heaters from wafer carriers and components to increase the available tank space
• Bottom grids separate heaters from the tank floor
• Available for all frame sizes
• Adds 1/8 inch to height

Specifications

Heater Element	Heating Coil
Wetted Surfaces	PFA/PTFE
Wattages	1.0 – 20 kW
Voltages	120 – 480 VAC 1 or 3 phase
Sizes (LxW)	7x5 to 19x14 inch
Height	1-5/8 inch
Temperature	200°C (392°F)
Hi-Limit Sensor	Type-J thermocouple
Ground Wire	Encapsulated
Lead Wire	15-ft

Industries

• Semiconductor Fabrication
• Solar Cell Manufacturing
• Flat-Panel Display, LEDs & Electronics
• Chemicals Manufacturing
• Industrial Manufacturing

Other Applications

Surface Preparation
Most surfaces must be prepared or prepped before plating. The Surface Preparation step often includes cleaning, sanitization, or electropolishing.

Products For Surface Preparation

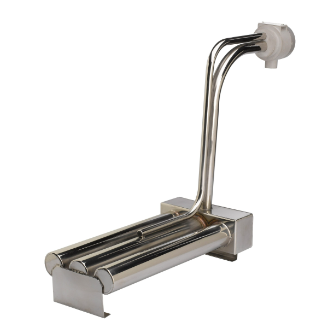

MOTS SINGLE – BOTTOM, DERATED Derated, low watt density, L-shaped, bottom, metal over the side Immersion Heater. Single or Three phase. Three phase. 500-6000 watts, 120-480 volts. .	MOTS TRIPLE – L SHAPED L-shaped, bottom style metal over the side heater. Three phase. Single or three phase. 3000-36000 watts, 200-600 volts.	6HS SERIES – TUBULAR Over the side, 6 element, tubular heater. Three phase. 6000-21000 watts, 208-600 volts.
9HX SERIES Low watt density, 9 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 3000-18000 watts, 208-600 volts.	6HX SERIES Low watt density, 6 element fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. Three phase. 2000-12000 watts, 208-600 volts.	3HXOL SERIES Low watt density, 3 element, bottom heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . 3000-18000 watts, 208-480 volts.

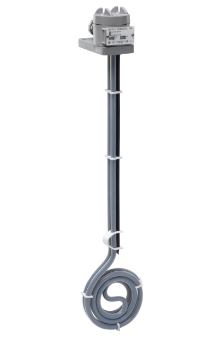

HXF SERIES Low-watt density, spiral heater. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions. 500-6000 watts, 120-600 Volts.	HX SERIES Low watt density, spiral. Fluoropolymer (PTFE) sleeved 304 stainless elements inert to most solutions . Single phase. 500-9000 watts, 120-600 volts.	QM SERIES HEATER ELEMENT Metal Element (QM part 1). Single phase. Heats up to 212°F (100°C). 500-10000 watts, 120-600 volts.

FAQ
Q: Where is Surplus located?
A: Our office located in HongKong,Dongguan and Shantou City.Our factory located in Shenzhen.

Q: Can I buy direct?
A: Yes,you can buy from Surplus Directly.

Q: Do you manufacture your products in house?
A: Most of our products are manufactured in-house at our factory.Some accessory items are not.

Q: Can I get the riser on my L-shaped aquaculture heater longer/shorter?
A: Yes.There is no price difference for making a heater with a middle riser,but there maybe a cost adder for a longer riser.

Q: What Third Party Approvals do your products carry(CE?)
A: Almost all of our products are CE compliant.

Q: How late can you ship?
A: Normally 7 days after comfirmed the order.

PACKING & SHIPPING
In our company,various packing methods are adopted according to different product features,such as carton boxes,wooden case etc.For electroplating plant equipment ,we can discuss it together and choose the most suitable one.

As for shipment,different ways have their own advantage and disadvantage:
By sea: the cheapest,suitable for large amounts,but take more time
By Air: faster, more convenient, expensive
By Express: more flexiable, door to door, expensive

Surplus Industrial Technology Limited is a global, China-based company focused on designing and manufacturing world-class equipment for heating high-purity fluids and gases, including chemical Inline heaters, deionized water heater, heat exchangers,PTFE tanks &PTFE Parts,PTFE Frame Immersion Tank Heaters. We are committed to creating quality products that are safe, precise, and clean for the industries we serve.

We serve the semiconductor, solar, medical, automotive, aerospace, printed circuit board, flat panel display, jewelry/watch, electroplating, and aquaculture industries.

Surplus, established in 2007, serves industries that include Semiconductor, Flat Panel Display (FPD),Microelectromechanical (MEMS), Nanotechnology, Photovoltaic (PV, solar cell), Liquid Crystal Display (LCD), Biomedical and Pharmaceutical.

Surplus’s product offering includes DI Water and Chemical Heaters, Quartz DI Water Heaters, Fluoropolymer & Quartz inline Chemical Heaters, Electric PTFE Immersion Heaters,PTFE Tanks & PTFE Parts, Immersion Coils Heat exchangers High-temperature Filter Chambers, Solvent heaters, Nitrogen heaters, and Rectifier Power Supplies.

We bring 40 years of experience to numerous industries, including semiconductor processing, clean environmental technology, energy generation, diesel emissions, medical and food service equipment.
